Details

Besides the common properties like name, category, description, you can configure these properties.
PropertyRequiredDescription
MethodYesCan be one of following: GET, POST, PUT, PATCH, DELETE
PathYesConfigure path of endpoint, must start from / accepts: lowercase a-z, upper case A-Z, numbers 0-9 as well as / and -, for dynamic parameters use @.
@ are used to map dynamically values added to your paths that can be accessible in your Components, when you want to map dynamically you would use typically /v1/users/{userId}, in RevoEngine you would do following /v1/users/@. Our Routing mechanism is quite advance to support multiple edge cases, please read it carefully.
ComponentNoYou can select Component that will be executed upon request.
Component VersionNoYou can select specific version of Component, default: LATEST.

​
Options

PropertyRequiredDescription
SchemaNoYou can select Guard that will be used for validating request.
Schema VersionNoYou can select specific version of Guard, default: LATEST.
Skip LibsNoWhether the compiler should ignore Component Libraries during compilation.
Legacy ResultsNoWhether the compiler should always return 200 status code together with full details about trace, logs, errors, warnings and other properties that are shown for Jobs.
Hide RequestNoWhether the platform should not log entire request payload, default false.
Hide ResponseNoWhether the platform should not log entire response, default false.

​
Input

​

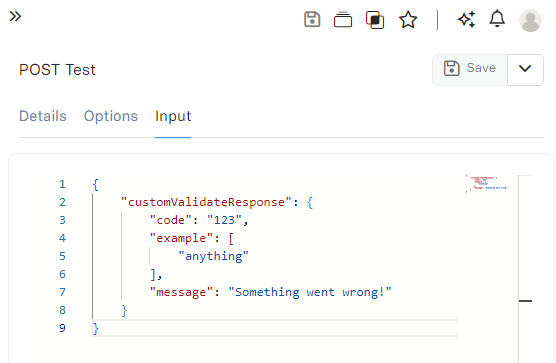

customValidateResponse

You can specify response body, however, there are some built-in properties that are added to response (but you can override it).
  • statusCode is hardcoded based on returned HTTP Code.
  • timestamp is generated upon sending response (server time).
Example configuration: Run API Inputs custom validate response
{
    "statusCode": 400,
    "timestamp": "2024-05-08T10:52:32.955Z",
    "code": "123",
    "example": [
        "anything"
    ],
    "message": "Something went wrong!"
}

​
extra

Additional parameter that you can pass to your component can be “any” type of data. This is useful especially when you want to configure static guards, static params or in case of using the same component by multiple Endpoints or even Jobs and distinguish them that way accessible with api.input().templateInputs.extra or any other configurable action. Example configuration: Run API Inputs extra
return api.input().templateInputs.extra;

// Returns
{
    "labels": [
        "1",
        "2",
        "3"
    ]
}

​

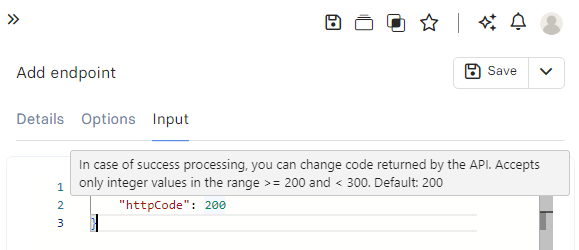

httpCode

In case of success response, we allow users to configure their success HTTP code in range of 200-299 (successful responses). Example configuration: Run API Inputs success http code

​

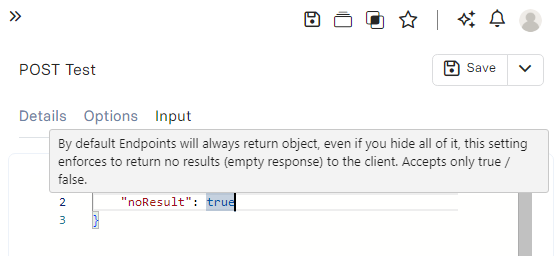

noResult

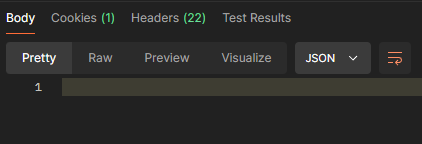

By default, Endpoints will always return an object, even if you hide all of it, this setting enforces to return no results (empty response) to the client. Accepts only true / false. Example configuration: Run API Inputs no result Example response: Run API Inputs no result response

​

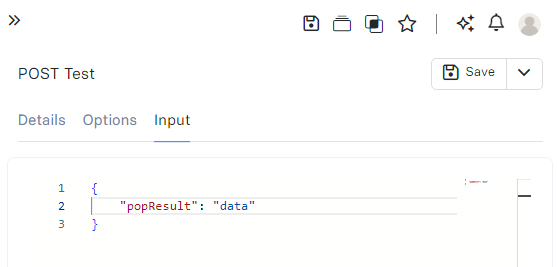

popResult

By default, Endpoints are processing all component elements and return their values, so the response is always as an object. However, you can configure to return a single element only regardless of their configuration like “hide”. Useful when you would like to return a different format of data (not object which is default) or only single element out of dozens of others, without a need of hiding others. Accepts only string value and must be identical as a Component element name. Example configuration: Run API Inputs pop result Responses:
[
    "Example #0",
    "Example #1",
    "Example #2",
    "Example #3",
    "Example #4"
]

​
response

In case the component is not bound to Endpoint, you can specify a response which can be “any” type of data. This can be used for mocking endpoints that don’t have a full implementation yet or to handle static configurations.
When Component is set, and responseis also configured, it will always prioritize Component execution.
When Component is not set, and response is not configured, Endpoint is considered in Invalid state!
{
    "statusCode": 502,
    "timestamp": "2024-05-08T12:29:46.949Z",
    "message": "Endpoint \"POST /test\" is not configured properly, verify your configuration."
}

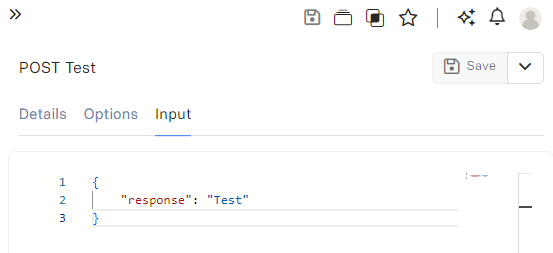

Example configuration: Run API Inputs response mock Response:
"Test"

​

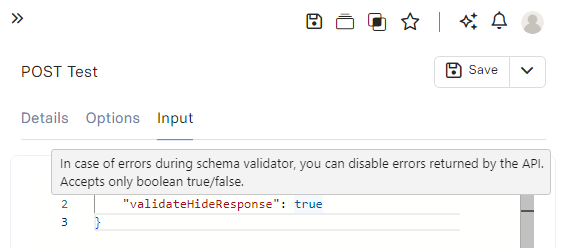

validateHideResponse

When you would like to hide the default errors response of Guard you should set to false default true. Run API Inputs validate hide response
{
    "statusCode": 400,
    "timestamp": "2024-05-08T10:23:37.821Z",
    "message": "Bad Request",
    "errors": [
    "\"productId\" is required but missing",
    "\"price\" is required but missing"
    ]
}

​

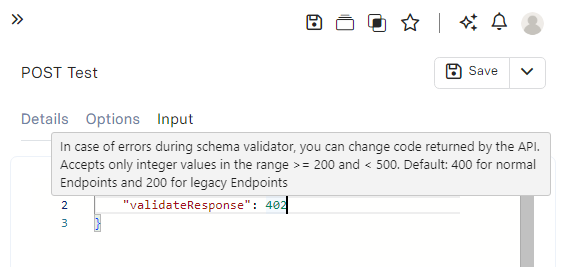

validateResponse

By default, we always return 400 in case request bounce of Guard validation. However, you can customize this behaviour by setting on the following status code between (inclusive) 200-499. Run API Inputs validate response

​
excludeLibs

You can configure the names of specific Component Libraries that should not be compiled into execution. This might be useful if you have libraries that are still work in progress or used sometimes, by default RevoEngine compiles all libraries into execution context.
If you have some libraries that are Active but they cannot compile (e.g. syntax error) you will get Errors of compiler (it should not affect execution if this library is not used, but warnings will come to your logs). Ideally they should be excluded with this option.

​
includeLibs

You can configure the names of specific Component Libraries that should be compiled into execution. This might be useful if you have hundreds of libraries that won’t be used in this execution context to improve the performance of Job execution.
